Collared Eyebolts

🔍

A collared eyebolt is a heavy-duty lifting point designed for secure and stable load lifting. It features a reinforcing collar at the base, which provides extra strength and support, making it suitable for angled lifts as well as vertical lifting. The collar helps distribute the load more evenly, reducing stress on the bolt and improving safety.

High Tensile Steel
Self Colour
EN Certified
WLL Marked

Enquire about Collared Eyebolts

Description

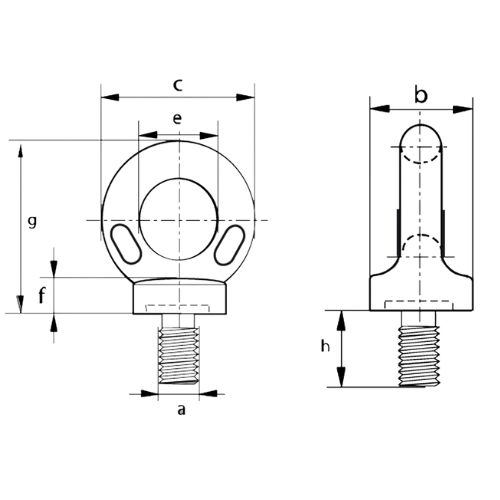

Product Code	WLL (kgs)	a (mm)	b (mm)	c (mm)	e (mm)	f (mm)	g (mm)	h (mm)	Weight (kgs)
EBC/6	100	6	22	33	15	7	36	18	0.06
EBC/8	150	8	22	33	15	7	36	18	0.06
EBC/10	330	10	22	33	15	7	36	18	0.06
EBC/12	400	12	22	33	15	7	36	18	0.06
EBC/14	500	14	29	44	20	10	48	23	0.15
EBC/16	800	16	29	44	20	10	48	23	0.15
EBC/18	1000	18	36	52	24	12	58	28	0.27
EBC/20	1600	20	40	59	27	14	65	32	0.38
EBC/22	1600	22	45	64	30	14	73	35	0.54
EBC/24	2500	24	52	77	35	17	84	40	0.85
EBC/30	4000	30	65	96	44	22	106	51	1.62
EBC/36	6300	36	81	118	54	27	131	63	3.12
