Truss Wraps

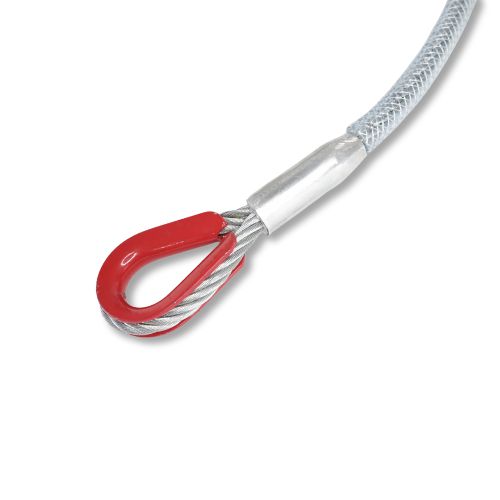

Truss Wraps, are a standard wire rope sling with reinforced PVC tubing between ferrules.  This provides an extra layer of protection and makes the slings more durable. These are widely used in crane operations, stage rigging, and heavy-load transportation, truss wraps ensure safe and efficient handling of materials.

  • Made to order by our in-house team, to customer specification.
  • Manufactured to EN31414-1:2003
  • Thimble or Soft Eyes using Straight or Tapered Ferrules (where appropriate)
  • All truss wraps are labelled or stamped with individual CE No & Working Load Limit.
  • Name/Logo label available at no extra charge.
  • Galvanised or Black Finish, all PVC tubing is Clear.
  • Range of coloured thimbles available.
  • TE = Thimble Eye FT = Fused & Tapered PL = Plain   SE = Soft Eye

Description

Rope Dia. (mm) 8mm 9mm 10mm 11mm 12mm 13mm 14mm 16mm 18mm 19mm 20mm 22mm
Wire Rope Construction 7x19 7x19 7x19 7x19 7x19 7x19 7x19 6x36 6x36 6x36 6x36 6x36
WLL (kgs) 5:1 822kgs 966kgs 1280kgs 1420kgs 1760kgs 2160kgs 2830kgs 3270kgs 4000kgs 4620kgs 5600kgs 6200kgs
Other dia & constructions available**
